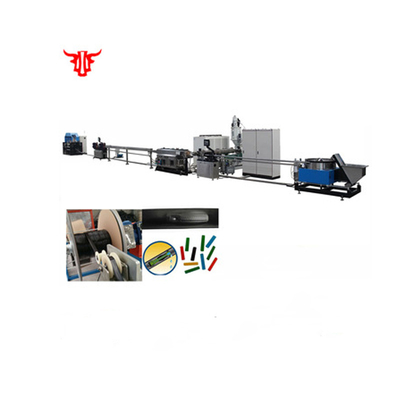

PIPE drip irrigation tape making machine/maze drip pipe production line/flat tape pipe machine

1 Set
MOQ
$16,000.00(1 - 2 Sets) $10,000.00(>=3 Sets)
Precio
PIPE drip irrigation tape making machine/maze drip pipe production line/flat tape pipe machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Application: PIPE
Plastic Processed: PE
Condition: New
Screw Design: Single-screw
Place of Origin: Shandong, China
Nombre de la marca: Bravebull
Voltage: 380V
Dimension(L*W*H): 6m*1.6m*2.5m
Weight: 2-10T
Warranty: 1 Year
After-sales Service Provided: Field installation, commissioning and training
Automatic Grade: Automatic
Power: 37kw
Certificación: CE ISO9001
Name: internal inlay drip irrigation pipe making machine
Material: PE
Machine type: SJ55/30
Motor power: 15kw
Total power: 35kw
Screw Diameter: 55mm
Pipe Diameter: 12/16mm
Production speed: 120 m/min
Use: Agricultural
Key words: pe drip irrigation tube production line
Información básica
Place of Origin: Shandong, China
Nombre de la marca: Bravebull
Certificación: CE ISO9001
Pago y Envío Términos
Packaging Details: About pe drip irrigation tube production line: 1. Precious and the size of the appropriate we will first use the film packaging, and then into the wooden box. 2. About the machine frame We will wrap the film with the film, and in the key parts and surrou
Supply Ability: 200 Set/Sets per Year pe drip irrigation tube production line
Descripción de producto

PE High Speed Drip Irrigation Pipe Making Machine



Features and uses:
Inlaid patch-type drip irrigation pipe is a flat shape of the drop inlaid in the tube on the wall of the integrated drip irrigation tube, widely used in greenhouse, field economic crops irrigation. Product features are:
1. Droplet and tube with the integration, easy to install, low cost, less investment.
2. Low from the use of self-filter window, anti-blocking performance.
3. The use of labyrinth flow channel, with a certain degree of pressure compensation.
4. Droplet spacing can be based on user requirements.

Product advantages:
1. This product is made of secondary molding process, manufacturing precision is high.
2. New wide flow channel, full turbulence, self-washing, anti-blocking performance.
3. Preferred material formula, anti-corrosion, anti-aging.
4. Loss of water along the head, laying long length.



Technical Parameters:



Diameter

12mm\16mm

Inner wall

0.2--0.6mm

Drip spacing

100--500mm

Production speed

70--110m/min

Droplet screening speed

360pcs/min

Punching speed

300pcs/min

Traction speed

200m/min

Winding speed

20--150m/min



application

APPLICATION



Feature — Inlaid patch drip tape that is inlaid with flat drip drip tape, it is flat shape drip inlay on the inner wall of the tube with integrated drip tape, drip filter with its own window, anti-blocking performance, irrigation Evenly.

Application   Widely used Irrigation in greenhouses, field crops. Labyrinth drip tape with labyrinth flow channel and drip hole a vacuum overall hot forming technology, good adhesion, high manufacturing precision.







Packaging & Shipping

 PACKING&SHIPPING

Packing:Film wrapping and wooden case packing

Delivery Detail:55days after payment

Shipping:By sea

 SHIPPING

Company Information







INTRODUCE-- Laiwu Brave Bull Plastic Machinery Co., Ltd. lies in Laiwu city, Shandong Province, is a self-researching and selling the plastic machinery company, has self-management import and export authority.



PRODUCT-- Our company mainly produce greenhouse film blowing machine, geomembrane film blowing machine, mulch film blowing machine, PE or PVC heat shrinkable film blowing machine and all kinds of HDPE and LDPE packaging film blowing machine, and also produce drip irrigation hose production line, drip irrigation pipe production line, PE thin wall pipe production line, PE/PVC/PPR pipe production line and UHMWPE Pipes Extrusion Line.



MARKET-- Our product are exported to Southeast Asia, Mideast, Africa, Europe, America, Oceania, etc, such as Indonesia, Taiwan, Singapore, Japan, Korea, Egypt, Syria, India, Russia, Kazakhstan, Mexico, New Zealand,etc.

Welcome to our company.



Similar Product


DRIP IRRIGATION MACHINE      PACKING FILM MACHINE       GREENHOUSE FILM MACHINE
Our Services

OUR SERVICE



1)Factory Price
Because our company Brave Bull Plastic Machinery Co.Ltd is a factory ,So we can offer a price of a win-win situation.

2)Sincere Professional Service
We have many years experience in this line and have a professional team, we can immediately solve the problem we may meet, so we believe we can cooperate very well.

3)Quality Assurance and After-sales Service
High standard raw material+advanced equipment+experienced+strict quality management=quality assurance. .And we hope we can establish a long term well cooperative relationship. we shall focus on the after-sales service.

4)Fast Delivery and Convenient Transportation
Our company is located on Laiwu City. which is near Qingdao Port.

5) Experienced

Our company has many years experence working with foreign customers,So frients can rest assured to cooperate with us.

FAQ

FAQ

Q: Are you a factory or trading company?
A: We are established in 2012, a actual factory and manufacturer in the line of film&package machine for 6 years.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Laiwu City, Shandong Province, China, about three hour by air from Qingdao. All our clients, from home or abroad, are warmly welcome to visit us!
Q: Which industries are widely used in of your machine?
A: Those are mainly used in film blowing machine,shrink film machine,packing machine,greenhouse film machine,stretch film machine, etc.
Q: How about the payment term?
A: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q: What about your main market?
A: Our products exported to Southeast Asia, Mideast, Africa, Europe, America, Oceania, etc, such as Indonesia, Taiwan, Singapore, Japan, Korea, Egypt, Syria, India, Russia,Kazakhstan, Mexico, New Zealand,etc.
Q: How does your factory do regarding quality control?
A: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q: What about warranty and do the engineers available to overseas?
A: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.

Contact Us

IF YOU HAVE ANY QUESTIONS, WELCOME TO CONTACT US.

                           Wendy

Email :  BraveBullMachine@163. com
Mobile: +86 15563418191

Tel :     +86 0634-6256382
FAX:     +86 0634-6256381
We Chat / WhatsAPP:+86 15563418191
ADRESS: No.004, Jiu long shan Road, Lai Wu new and high-tech zone, Shandong Province,China.
